What is a drain pipe? Where is its application and uses? To remove excess surface water, running water, and also to manage underground aquifers that exist at a shallow depth, the method of piping drainage and water disposal and managing the quality of water for use in the required cases should not be used. It is very suitable from the economic and environmental point of view.

The drainage pipe is used to remove excess water from a specific surface and passage and ground. To remove underground water and runoff by pumping water or gravity flow is called drainage. There are two distinct types of drain pipes, one is used in the civil and construction industry and is used to remove excess water from the path of structures, and the other is used to control the level of water in agricultural fields to control the minerals in the water. The soil is used.

The price of the drain pipe

Rotengran Parse Drainage Pipe Manufacturing Factory

Code	Mesh drain pipe	Price	Quantity in truck	Coil size	Size in inches	Size in mm
1	mesh drainage pipe (perforated)	500,000 IRR	12 coil	100 Meter	4 inch	size 100 Mm
2	Covered mesh drainage pipe (fibrous)	800,000 IRR	11 coil	100 Meter	4 inch	size 100 Mm
3	mesh drainage pipe (perforated)	900,000 IRR	10 coil	100 Meter	5 inch	size 125 Mm
4	Covered mesh drainage pipe (fibrous)	1,300,000 IRR	9 coil	50 Meter	5 inch	size 125 Mm
5	mesh drainage pipe (perforated)	1,200,000 IRR	9 coil	70 Meter	6 inch	size 160 Mm
6	Covered mesh drainage pipe (fibrous)	1,800,000 IRR	9 coil	40 Meter	6 inch	size 160 Mm
7	mesh drainage pipe (perforated)	1,700,000 IRR	9 coil	40 Meter	8 inch	size 200 Mm
8	Covered mesh drainage pipe (fibrous)	2,800,000 IRR	8 coil	20 Meter	8 inch	size 200 Mm

drain pipe

What is PVC drain pipe?

PVC drainage pipes are the most used and requested in drainage pipes. PVC drainage pipes have a longer lifespan than other pipes due to the type of material, and the holes are not caught and closed during The time of use is long compared to other sexes. Note that the lack of deposition in PVC pipes and their flexibility is more than other pipes.

Rotengaran Parse, the largest producer of drain pipes up to size 500 mm, announces its readiness for civil, agricultural and construction projects. Rotengaran drainage pipes can be produced and supplied to dear customers in 70 meter and 100 meter coils.

What are drain pipes?

Drainage pipes can be produced in three models: simple drainage pipe, semi-mesh pipe and mesh pipe. And it is produced in two models of plain polyethylene drain pipe and fiber drain polyethylene pipe in Rotengran Parse factory.

PVC drain pipe is one of the main products of Rotengaran Parse factory, which is equipped with German production line and technology and is designed and produced under the supervision of experienced engineers and technicians according to DIN 1187 standard.

Refer to this page to see the list of polymer pipe standards

Drain pipe catalog

To download the complete drain pipe catalog of the products produced in the big drain pipe factory of Rotengran Parse, click on the link below and visit all our services and products.

Drain pipe catalog

Mesh drain pipe:

Drainage pipes can be produced as mesh hose coil and semi-mesh hose coil, and the meterage of the drainage pipe coil as well as the number of drainage pipe holes for each row can be changed at the request and purchase order of the pipe from the customer.

You can get 70 meter and 100 meter coils up to 200 mm diameter and up to 500 mm diameter in 6 meter branches. To buy, contact the technical and sales department of the company.

Drainage pipe: In the beginning, it should be produced using PVC material by extruder method, and then, according to the need, it should be prepared as a semi-mesh drainage pipe or a full mesh drainage pipe in certain formats, and if there is a need for a coated drainage pipe. Special fibers are woven around the drainage pipe using modern textile methods.

Buying a drain pipe:

Purchase guide file number 1

drain pipe

Drain pipe is produced in various forms:

Mesh drain pipe
Fiber drain pipe
Karugiti drainage pipe
Perforated drain pipe
Covered drain pipe
PVC drainage pipe
Grooved drain pipe
Hose drain pipe
Drain pipe with synthetic fibers

The price of drain pipe fittings

Price list of drainage pipe fittings

Code	Drainage pipe connections	The price of drain pipe fittings
9	three ways 200 – 90 Degree	2.850.000 IRR
10	three ways 200 – 45 Degree	3.050.000 IRR
11	three ways 160 – 90 Degree	1.450.000 IRR
12	three ways 160 – 45 Degree	1.850.000 IRR
13	three ways 125 – 90 Degree	1.090.000IRR
14	three ways 125 – 45 Degree	1.090.000 IRR
15	three ways 100 – 90 Degree	870.000 IRR
16	three ways 100 – 45 Degree	870.000 IRR
17	*three ways conversion 160200 – 90 Degree**	2.300.000 IRR
18	*three ways conversion 160200 – 45 Degree**	2.500.000 IRR
19	*three ways conversion 125200 – 90 Degree**	2.200.000 IRR
20	*three ways conversion 125200 – 45 Degree**	2.300.000 IRR
21	*three ways conversion 110200 – 90 Degree**	2.100.000 IRR
22	*three ways conversion 110200 – 45 Degree**	2.100.000 IRR
23	*three ways conversion 125160 – 90 Degree**	2.400.000 IRR
24	*three ways conversion 125160 – 45 Degree**	1.400.000 IRR
25	*three ways conversion 110160 – 90 Degree**	1.400.000 IRR
26	*three ways conversion 110160 – 45 Degree**	1.400.000 IRR
27	*three ways conversion 110125 – 90 Degree**	1.040.000 IRR
28	*three ways conversion 110125 – 45 Degree**	1.100.000 IRR
29	knee 200 – 90 Degree	5.800.000 IRR
30	knee 200 – 45 Degree	5.200.000 IRR
31	knee 160 – 90 Degree	2.950.000 IRR
32	knee 160 – 45 Degree	2.820.000 IRR
33	knee 125 – 90 Degree	1.800.000 IRR
34	knee 125 – 45 Degree19	1.700.000 IRR
35	knee 100 – 90 Degree	1.600.000 IRR
36	knee 100 – 45 Degree	1.500.000 IRR
37	cap PVC 125	1.100.000 IRR
38	cap PVC 110	410.000 IRR
39	cap PVC 200	2.100.000 IRR
40	cap PVC 160	1.500.000 IRR
41	Intersection 200 – 90 Degree	3.300.000 IRR
42	Intersection 200 – 45 Degree	4.100.000 IRR
43	Intersection 160 – 90 Degree	1.900.000 IRR
44	Intersection 160 – 45 Degree	2.500.000 IRR
45	Intersection 125 – 90 Degree	1.500.000 IRR
46	Intersection 125 – 45 Degree	1.500.000 IRR
47	Intersection 110 – 90 Degree	1.150.000 IRR
48	Intersection 110 – 45 Degree	1.150.000 IRR
49	*conversion 110200**	3.450.000 IRR
50	*conversion 110160**	1.850.000 IRR
51	*conversion 110125**	1.300.000 IRR
52	*conversion 160200**	3.750.000 IRR
53	*conversion 125200**	3.710.000 IRR
54	*conversion 125160**	2.100.000 IRR
55	bushen size 100 Mm	220.000 IRR
56	bushen size 125 Mm	300.000 IRR
57	bushen size 160 Mm	520.000 IRR
58	bushen size 200 Mm	820.000 IRR

خرید لوله زهکش: فایل راهنمای خرید شماره 2

Fiber drain pipe

PVC drain pipe

Rotengran Parse drainage pipe manufacturer:

Rotengaran Parse drainage pipe producer is one of the largest producers and exporters of drainage pipes with a variety of fibrous drainage pipes, PVC drainage pipes and mesh and grooved drainage pipes. Parse Rotengran Group, with more than 20 years of experience in the production of all types of sewage, irrigation and gas pipes, as well as the production of all types of polyethylene pipe fittings and producers of polyethylene welding machines, is ready to cooperate with colleagues and the respected exporter of the above products.

Purchase guide file number 3

Drainage polyethylene pipe

Hose drain pipe

Carogate drainage pipe

The price of drainage polyethylene pipe

(single-walled polyethylene pipe with simple holes)

Code	Drainage polyethylene pipe	The price of polyethylene drainage pipe
1	Polyethylene drain pipe 110	510,000 IRR
2	Polyethylene drain pipe 125	600,000 IRR
3	Polyethylene drain pipe 160	970,000 IRR
4	Polyethylene drain pipe 200	1,480,000 IRR
5	Polyethylene drain pipe 250	2,340,000 IRR
6	Polyethylene drain pipe 315	3,650,000 IRR
7	Polyethylene drain pipe 400	5,860,000 IRR
8	Polyethylene drain pipe 500	9,200,000 IRR
9	Polyethylene drain pipe 600	8,400,000 IRR
10	Polyethylene drain pipe 700	11,010,000 IRR
11	Polyethylene drain pipe 800	23,300,000 IRR
12	Polyethylene drain pipe 900	29,500,000 IRR
13	Polyethylene drain pipe 1000	36,400,000 IRR

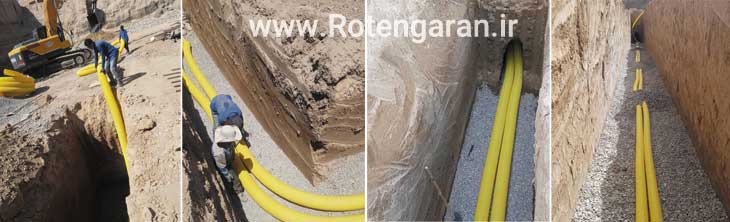

Drainage pipe installation operation

Carrogate polyethylene drain pipe price list

(single-walled corrugated polyethylene pipe with holes)

Code	Carrogate polyethylene drain pipe	Price of Carrogate polyethylene drain pipe
1	Carrogate polyethylene drain pipe 110	1,100,000 IRR
2	Carrogate polyethylene drain pipe 125	1,900,000 IRR
3	Carrogate polyethylene drain pipe 160	3,150,000 IRR
4	Carrogate polyethylene drain pipe 200	2,150,000 IRR
5	Carrogate polyethylene drain pipe 250	3,150,000 IRR
6	Carrogate polyethylene drain pipe 315	4,750,000 IRR
7	Carrogate polyethylene drain pipe 400	7,500,000 IRR
8	Carrogate polyethylene drain pipe 500	12,150,000 IRR
9	Carrogate polyethylene drain pipe 600	16,900,000 IRR
10	Carrogate polyethylene drain pipe 700	25,300,000 IRR
11	Carrogate polyethylene drain pipe 800	33,900,000 IRR
12	Carrogate polyethylene drain pipe 900	47,700,000 IRR
13	Carrogate polyethylene drain pipe 1000	57,500,000 IRR

Price list of mesh polyethylene drainage pipe

(Single-wall corrugated polyethylene pipe with holes – yellow color)

Code	Mesh polyethylene drainage pipe	The price of mesh polyethylene drain pipe
1	Mesh polyethylene drainage pipe 110	510,000 IRR
2	Mesh polyethylene drainage pipe 125	600,000 IRR
3	Mesh polyethylene drainage pipe 160	710,000 IRR
4	Mesh polyethylene drainage pipe 200	1,100,000 IRR
5	Mesh polyethylene drainage pipe 250	1,600,000 IRR
6	Mesh polyethylene drainage pipe 315	2,500,000 IRR
7	Mesh polyethylene drainage pipe 400	3,900,000 IRR
8	Mesh polyethylene drainage pipe 500	6,010,000 IRR
9	Mesh polyethylene drainage pipe 600	8,400,000 IRR
10	Mesh polyethylene drainage pipe 700	11,010,000 IRR
11	Mesh polyethylene drainage pipe 800	15,510,000 IRR
12	Mesh polyethylene drainage pipe 900	19,810,000 IRR
13	Mesh polyethylene drainage pipe 1000	25,210,000 IRR

Price list of semi-mesh polyethylene drainage pipe

(Single-wall corrugated polyethylene pipe with holes – yellow color)

Code	Semi-mesh polyethylene drainage pipe	Price of Semi-mesh polyethylene drainage pipe
1	Half mesh polyethylene pipe 110	510,000 IRR
2	Half mesh polyethylene pipe 125	600,000 IRR
3	Half mesh polyethylene pipe 160	710,000 IRR
4	Half mesh polyethylene pipe 200	1,100,000 IRR
5	Half mesh polyethylene pipe 250	1,600,000 IRR
6	Half mesh polyethylene pipe 315	2,500,000 IRR
7	Half mesh polyethylene pipe 400	3,900,000 IRR
8	Half mesh polyethylene pipe 500	6,010,000 IRR
9	Half mesh polyethylene pipe 600	8,400,000 IRR
10	Half mesh polyethylene pipe 700	11,010,000 IRR
11	Half mesh polyethylene pipe 800	15,510,000 IRR
12	Half mesh polyethylene pipe 900	19,810,000 IRR
13	Half mesh polyethylene pipe 1000	25,210,000 IRR

Purchase guide file number 4

The price of the drain pipe

Rotengran Parse Drainage Pipe Factory is a producer of all kinds of drainage pipes

The drain pipe factory has a lot of variety in drain pipes and the consumers and producers of drain pipes have given different names to it. When we search on the internet, a single result is not shown for searching the word drain pipe. We try according to the above statements. Below, let’s check the types of drain pipes in a simple way.

Simple drain pipe

Simple drainage pipe, as its name suggests, is the simplest type of drainage pipe and is mostly used on the surface of the ground and does not have the appearance of a hose.

Corrugated drain pipe

Most of the mistakes are made in the name of the drain pipe, which generally requires a corrugated drain pipe and they ask for a simple mistake. The appearance of the corrugated pipe is like a hose and has a wave, which is very suitable for uneven ground, although due to the wavy nature, it is not suitable for every type of ground.

Porous drain pipe

Porous drain pipe is similar to a simple drain pipe and has a hose shape.

The drain pipe is one of the most widely used pipes in the discussion of drainage and collecting surface water in agricultural and horticultural fields, which is underground, obstructing the construction of the existing project, and the place of contracting operations, and may cause land loss in the future.

Fiber drain pipe:

The drainage pipes of Rotengran Parse Manufacturing Company are produced according to the German DIN 1187 standard.

Rotengran Parse drainage pipes are mostly produced in simple, mesh and non-mesh form. The length of the coils and the number of holes in each row can be changed according to the order. Drainage pipes act as a conveyor and exhaust system and are made in different types and in porous, corrugated and simple networks and fibrous drainage pipes.

Carrogate drainage pipes are produced with UPVC materials and special stabilizer additives.

Size classification of PVC drainage pipes of Rotengran Parse company:

PVC drainage pipe 100 (mesh drainage pipe / semi-mesh drainage pipe)
PVC drainage pipe 125 (mesh drainage pipe / semi-mesh drainage pipe)
PVC drainage pipe 160 (mesh drainage pipe / semi-mesh drainage pipe)
PVC drainage pipe 200 (mesh drainage pipe / semi-mesh drainage pipe)

بیشتر بدانید لوله کاروگیت 1403/09/01 قیمت بزرگترین تولید کننده لوله در ایران

Features of the drain pipe

Note that the use of drainage pipes in agricultural land causes a balance between soil oxygen and soil water during rain and irrigation, which is very desirable for strengthening the agricultural product and will make it grow better.

In mesh drainage systems, if the agricultural land has alkaline or saline soil, mesh drainage pipes are used, which are very necessary after washing to remove harmful substances and mineral salts unsuitable for soil plant growth. The result of this work will definitely be a better product and strengthening of the agricultural soil.

What gender is the drain pipe?

In the past, the drainage pipes were made of mud, clay, and cement, which are no longer used, and in the not so distant past, iron drainage pipes were also used, which had many disadvantages, including sedimentation and rusting. But today, compressed plastic drainage pipes are used (PVC drainage pipes), which do not have the disadvantages of the past and have a much longer lifespan than other materials.

Application of PVC drainage pipe

• In agricultural lands whose soil is salty or alkaline.

• Around buildings, bridges, roads, tourist centers, etc.

• In sports or recreational fields, parks, etc.

The advantage of PVC drainage pipes compared to other types of pipes

It has a long service life compared to cement or clay pipe.
The advantage of light weight and easy transportation.
Easy installation and very fast installation of the pipe.
High resistance against water and soil chemical solutions.
High flexibility according to its type of material.
Having uniform inlets.
Due to the nature and hardness of PVC, the possibility of closing the holes as well as changes in the length and width of the holes in PVC drainage pipes will be very low and practically rare, considering the type of materials used in PVC pipes.
Due to Rotengran Parse drainage pipe being corrugated, their external load tolerance will be much higher than smooth pipes because the pressure on the congresses of the drainage corrugated pipe will be spread and increase the resistance of the pipe.

Drain pipe covered with synthetic fibers

The drain pipe with synthetic fibers is one of the installation and piping stages of sandblasting with granulated sand, which is one of the most expensive stages and the main principles of piping. Please note that the costs of sandblasting are made with the destruction and removal of sand. And it is also harmful for the environment. It has been about 20 years now that the top technology countries do not use this method because of the protection of the environment.

In the stages of choosing suitable sand and sandblasting for the drain pipe, they have considered saving money and turned to the drain pipe with synthetic or natural fibers. which lowers the total cost for the project and the installation and piping procedures are done quickly, in addition, the useful life of the drain pipe is accelerated by choosing higher fibers and its operation.

What is a drainage system?

In the drainage system in sports and agricultural fields, buildings, etc., excess water on the surface must be collected, which causes damage to the soil and land in that area, which is done by drainage pipes through PVC drainage pipes or The drainage pipe will be carried out.

The cost and speed of installing the drainage pipe

The most important factor in the speed of installing a drain pipe is its type. If the pipes are made of synthetic fibers, the speed of installation and pipe laying will be very high, and it will save a lot of money, and in addition, the life and performance of the pipe will increase. Note that piping in the sandblasting system will increase the installation time and increase the cost.

We have launched one of the most advanced fiber drain pipe production lines in Rotengaran Parse, the filter permeability of which is produced from 300 to 1000 microns and has been used for various drainage projects and has brought customer satisfaction. Contact Rotengaran consultants and find out about the variety of our products and make the best choice for your drain pipe project.

Technical specifications of PVC drainage pipe made by Rotengran Parse

PVC drainage pipes produced by Rotengaran Parse are produced according to German DIN 1187 standard.

The important point in buying drainage pipes is the number of holes in each row and the level of the pipe’s flushing surface. PVC drainage pipes made by Rotengran Parse are specially produced with German technology using PVC powder raw materials and the only producer of such pipes. It is in Iran and it is not comparable with similar drainage pipes.

Drainage pipes are made according to DIN 1187 standard and Iranian national standard No. 7669 in Rotengaran, Parse.

UPVC drainage pipe:

UPVC drainage pipe is the most widely used type of drainage pipe. They must have sufficient resistance and have high durability in environmental and chemical conditions such as pipes in the soil, water, corrosion and freezing, internal pressure of the soil and decay.

In the pipes, the possibility of clogging and blockage in the holes as well as the change in the length and width of the holes of PVC drain pipes is much less than other perforated polymer pipes, and this is one of the most important factors in choosing UPC drainage pipes. PVC perforated pipes are the most widely used polymer pipes in the drainage sector. Due to the congressional nature of the drain pipe of Rotengran Parse company, their ring bearing is much higher than flat pipes.

Uses of drainage pipe:

Deep groundwater drainage includes the discharge of infiltrated water into the substructure and pavement layers, which are the three main sources as follows:

atmospheric precipitation (rainwater)
Groundwater, including surface water or surface water
Waters caused by the presence of active springs and leakage levels in the upstream, adjacent and underground parts of the road

drain pipe

Standardization and testing of pipes in Rotengran Parse factory

The well-equipped and standard Rotengran Parse laboratory for drain pipe testing includes the following:

Impact resistance test
Strength test, stirring
Testing the vent valve
Tensile test with bushing couplings
Dimensional test
Marking test

بیشتر بدانید لوله کاروگیت 1403/09/01 قیمت بزرگترین تولید کننده لوله در ایران

Technical specifications of the drain pipe:

In Rotengran Parse, for quality control according to the national standard, a dimensional test is carried out by testing impact resistance, impermeability, tensile strength.

Length of a coil (mm)	Inner diameter (mm)	Outer diameter (mm)	Nominal diameter (mm)
۱۷۰	۹۱٫۱	۱۰۰٫۲	۱۰۰
۱۱۰	۱۱۵٫۵	۱۲۵٫۵	۱۲۵
۷۰	۱۲۹٫۷	۱۴۴٫۵	۱۶۰
۴۰	۱۸۳٫۶	۲۰۳٫۳	۲۰۰

Specifications of dimensions and holes of drainage pipes:

nominal size	External diameter	Minimum outer diameter		Minimum internal diameter	Coil length
Pipe diameter (mm)	۲۰۰		۱۶۰	۱۲۵	۱۰۰
Number of holes in each row around the pipe	۶		۶	۶	۶
The number of rows of holes in one meter length	۶۱		۸۴	۸۶	۸۶
Total number of holes in one meter length	۳۶۶		۵۰۴	۵۱۶	۵۱۶
Dimensions of the holes (mm)	۸*۱٫۳		۵*۱٫۳	۵*۱٫۳	۵*۱٫۳
Flushing surface of each hole (mm)	۴/۱۰		۶٫۵	۶٫۵	۶٫۵
Flushing level in a meter (mm)	۳۸۰۶		۳۲۷۶	۳۳۵۴	۳۳۵۴

Fiber PVC drain pipe:

PVC drainage pipes – fiber PVC with a coating of synthetic fibers has countless advantages, which has led to the use of this fiber pipe in many different projects and applications.

For this reason, Rotengaran Parse Drainage Pipe Factory has started producing large-scale fiber PVC drainage pipes and announced its readiness to cooperate with respected contractors and buyers, both in the field of projects inside Iran and in the field of exporting drainage pipes. takes

Pay attention and it is worth mentioning that the soil of the area must be tested for the use of synthetic fibers for drainage pipes and it is generally examined according to the permeability of 300 microns to 1000 microns.

Fiber drain pipe

Fiber drainage pipe

Fiber PVC drain pipe

Fiber drain pipe

Advantages of fiber drain pipes:

Their longevity compared to cement or clay pipes
The weight of the tubes is low and easy to transport.
Pipe installation is easy and very fast.
The resistance of fiber pipes against chemical salts of water and soil is very high.
High flexibility
Uniform inlet openings in the length and width of the tube
Cost reduction due to smaller trench width
The high speed of installation of drainage pipes with fibers
More uniformity and durability of the coating created around the drainage pipes
Can be used in acidic and alkaline soils and salty soils.

The use of drainage pipes:

In sports or recreational fields and…
In agricultural lands to remove excess water from irrigation or rain…
In lands that are salty or alkaline due to various reasons…
Around buildings, bridges, roads…

Advantages of PVC drainage pipes:

Long life of drainage pipes compared to cement pipes
Light weight and easy to transport
Great ease and speed in installing and operating the pipe
Flexibility
Low installation costs and no need for maintenance

Table of drainage pipe holes:

nominal size	External diameter	Minimum outer diameter		Minimum internal diameter	Coil length
Drainage pipe diameter (mm)	۲۰۰		۱۶۰	۱۲۵	۱۰۰
Number of holes in each row around the pipe	۶		۶	۶	۶
The number of rows of holes in one meter length	۶۱		۸۴	۸۶	۸۶
Total number of holes in one meter length	۳۶۶		۵۰۴	۵۱۶	۵۱۶
Dimensions of the holes (mm)	۸*۱٫۳		۵*۱٫۳	۵*۱٫۳	۵*۱٫۳
Flushing surface of each hole (mm)	۴/۱۰		۶٫۵	۶٫۵	۶٫۵
Flushing level in a meter (mm)	۳۸۰۶		۳۲۷۶	۳۳۵۴	۳۳۵۴

PVC drainage pipe connections:

knee ۴۵ Degree
knee ۹۰ Degree
Mofe U
Viewing window
conversion
three ways ۴۵ Degree
three ways ۹۰ Degree
siphon
Three to two heads silent navel flange
three ways three flange heads
three ways, three heads are silent
spigot flange
Bushen is silent
bend knee

Important points about drainage:

Regarding the use of these pipes, the channels that are used in drainage should be stable and protected by grass or vegetation, and during rainy conditions, in terms of the entry of water contaminated with oil, fatty substances or chemicals, they should not be directly be drained In this situation, a system should be used to separate water from these materials. In general, important things should be checked and prevented in order to protect oil and grease from entering the pipes.

The conditions of underground water tables and their location should be checked. The reason is that if the water level is close to the ground level, drainage should not be done and the direct entry of water into the slopes and slopes should be prevented, and drainage should be stopped if there are signs of soil erosion and settlement on the ground.

Drainage pipe factory

Drainage pipe manufacturer

Perforated drainage pipe

Grooved drainage pipe

Mesh drainage pipe

Karugiti drainage pipe

Polyethylene pipes for drainage:

In simpler words, it should be said that one of the applications of polyethylene carrogate pipes is for drainage purposes. Polyethylene pipe for all drainage systems that are needed to lower the underground water level for long or temporary periods, such as:

Conventional drainage systems, drainage from specific structures, water collection from drilling sites, and removal of domestic and industrial wastewater have the best results.

As you read above, the main advantage of Polyethylene drain pipe made by Rotengaran Parse is its high resistance to wear, because in the above-mentioned cases and domestic and industrial wastewater, there is a significant amount of sand, which causes wear and tear of the ducts. .

Drainage polyethylene pipe:

Due to its long and useful life, it is the most economical type of pipe and according to the quality, standard degree, grade, size and meterage, it has different prices. The price of the drain pipe will have a direct relationship depending on the type of pipe used for drainage.

Be careful in the implementation, the implementation of each system should be done after performing hydraulic and static calculations. It is very important to carry out such calculations, especially when there is a question of transferring sewage with a large volume of waste and solid materials and a large load is imposed on the pipeline.

For the backfilling of these pipelines, concrete stone materials can be used (Concrete Aggregate stone materials include sand and gravel and aggregates with dimensions of 3 to 70 mm) that meet the requirements of the Polish standard PN-86/B-06712 . The granularity of these materials should be up to 8 mm and in parts should not exceed 3% by weight and 10% by weight.

The thickness of the backfill in the pipe enclosure must be in accordance with the engineering design and not exceed 15 cm. Contact us to buy drainage pipes and use free consultation and benefit from the services and products of Rotengaran and our specialized group.

Polyethylene drain pipe is widely used in various fields and has high quality and very reasonable price. Rotengaran is one of the largest manufacturers of drainage pipes in the Middle East and will produce and provide you with the best and cheapest types of drainage pipes. To install the drain pipe, you can refer to the related article.

Drainage pipes are the most economical type of pipes due to their long and useful life and have different prices according to the quality, standard degree, grade, size and meterage. The price of the drain pipe will have a direct relationship depending on the type of pipe used for drainage.

The standard of polyethylene drainage pipes

In general, according to the contents you have considered, Polyethylene drain pipe is produced in different sizes and based on DIN 1187 and 7669 standards from polyethylene grade 100 or polyethylene grade 80 of Maron and Amir Kabir Petrochemicals.

The advantages of polyethylene pipes in the irrigation and drainage network

It has openings and entrances with uniform diameter and radius
High installation speed
Ability to control input and output
Hydraulic properties
Saving Water
The cost of buying and installing a meter
light weight
Easy transportation
High flexibility of the tube
High durability
High mechanical and chemical resistance
Resistant to decay

What is drainage polyethylene pipe?

It has a ring and wavy appearance with a smooth and polished inner layer and with an internal pressure of 1.5 bar, it is used as an underground channel and drainage. Surface and subsurface, including drainage, should be used.

It is worth mentioning that in cases where the pipe is going to be used on the ground, it is very important to choose a pipe that has a long service life because this is very costly and time consuming.

Usually, the service life of Carrogate pipes is estimated to be 50 years and in terms of this high resistance against dead and alive pressures, it is very effective in applications such as drainage.

Drainage polyethylene pipe dimensions and size:

Dimensions and sizes Drainage polyethylene pipe is produced in different sizes and dimensions; Carrogate pipes with an internal diameter of 100 to 3000 mm are produced in the large factory of Rotengaran, Parse; The length of Carrogate pipe branches in standard mode is 6 and 12 meters.

Double-walled polyethylene drainage pipe:

drain pipe

The double-walled polyethylene drainage pipe is one of the best types of drainage pipe of its kind, which is used in the form of 6 and 12 meter branches and bushen connection in the form of semi-mesh and mesh in drainage.

Drilling method Drainage polyethylene pipe:

The underground water level should be lowered in such a way that the structure of the sub-base soil or the sub-base soil of the adjacent buildings is not disturbed. The underground water level should be lowered at least half a meter to the bottom of the trench.

Due to the destructive effect of changes in the underground water level on the structure of the trench floor, the operation of keeping the underground water level down must be done 24 hours a day. In addition, rainwater must be prevented from entering the trench.

The supporting structures of the trench wall should be at least 15 cm above the surrounding ground level, and the ground level should be sloped in such a way that water can be removed easily.

All loose soils (which have been drained at the time of application) without grains larger than 20 mm (in the case of crushed stone not larger than 16 mm) or cohesive soil that meets the requirements of standard PN-B-02481 and have symbols ms, ss, zs may be used as a sub-base in the gravity pipeline.

size (Mm)	Description
۱۶۰	Semi-mesh mesh polyethylene pipe_half mesh
۲۰۰	Mesh polyethylene pipe_half mesh
۲۵۰	Mesh polyethylene pipe_half mesh
۳۱۵	Mesh polyethylene pipe_half mesh
۴۰۰	Mesh polyethylene pipe_half mesh
۵۰۰	Mesh polyethylene pipe_half mesh
۶۰۰	Mesh polyethylene pipe_half mesh
۷۰۰	Mesh polyethylene pipe_half mesh
۸۰۰	Mesh polyethylene pipe_half mesh
۹۰۰	Mesh polyethylene pipe_half mesh
۱۰۰۰	Mesh polyethylene pipe_half mesh
۱۲۰۰	Mesh polyethylene pipe_half mesh
۱۴۰۰	Mesh polyethylene pipe_half mesh
۱۶۰۰	Mesh polyethylene pipe_half mesh
۱۸۰۰	Mesh polyethylene pipe_half mesh
۲۰۰	Mesh polyethylene pipe_half mesh
۲۵۰۰	Mesh polyethylene pipe_half mesh

drainage pipe

Contact us to inquire about the price of consultation.

Telefax (special line): 02144106256
Telefax (special line): 02632701094
Engineer Mohammad Reza Azizi (CEO): 02144106256
Engineer Mahmoud Esadi (sales manager): 09121249231
Email: Rotengaran@gmail.com

Drainage pipes are exported through Rotenplast website, one of the subgroups of Rotengran Parse Holding. Please contact us to inquire about the price of drainage polyethylene pipe for export.

Please write us your comments, we will respond to your messages.
